Stacking device 3x

Stacking device 3x

Automatic stacking device for plates, trays and containers

WATCH THE VIDEO »

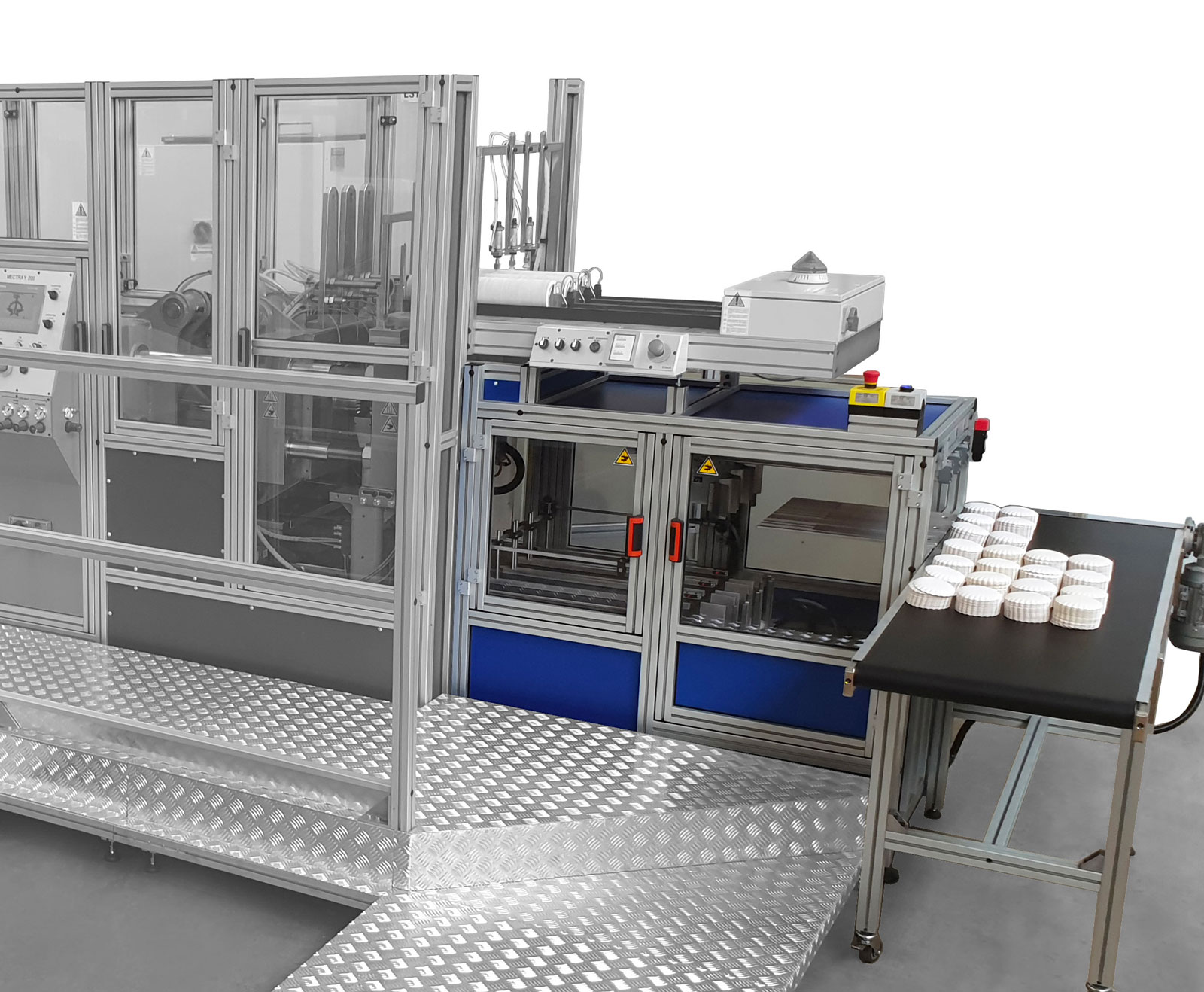

The 3x Stacking Device is an automatic stacking device for plates, trays and small trays, for the Mectray100 and Mectray200 machines that are equipped with 3-cavity molds.
The Stacking Device 3x is customized to a specific size.
The quantity of stackable products depends on the thickness of the cardboard used. The maximum height of each pile indicated in the table depends on the shape and size of the product.

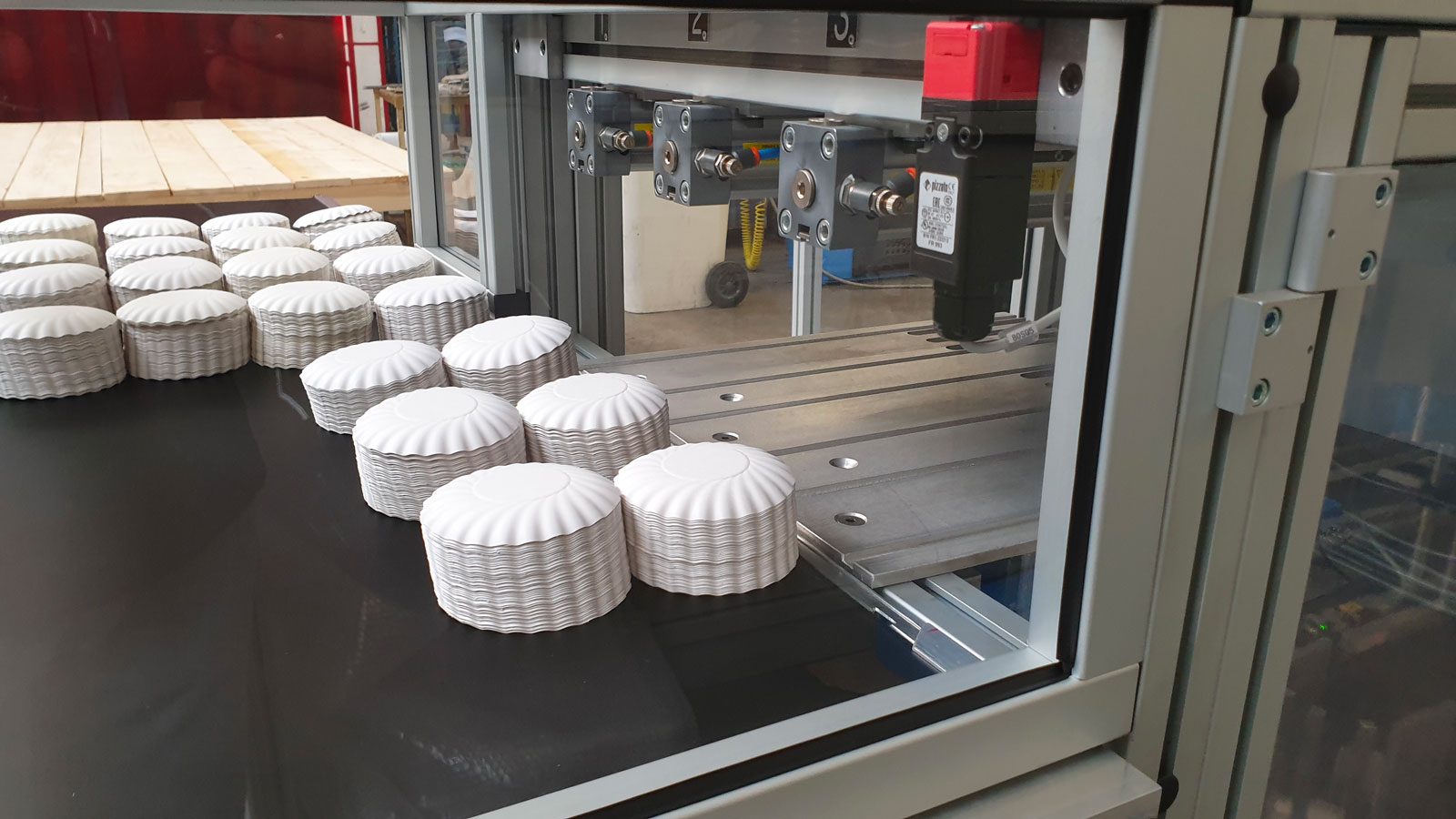

A conveyor belt synchronized with the unloading of the products can be added to the unloading outlet of the Stacking Device.

Stacking device 3x

Technical features

Product piles no. that can be managed per stacking device:
3 indipendent
Maximum height of each pile:
100 mm (*)
Unloading pile product height:
750 ÷ 900mm
Unloading pile product overrun:
55mm

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
