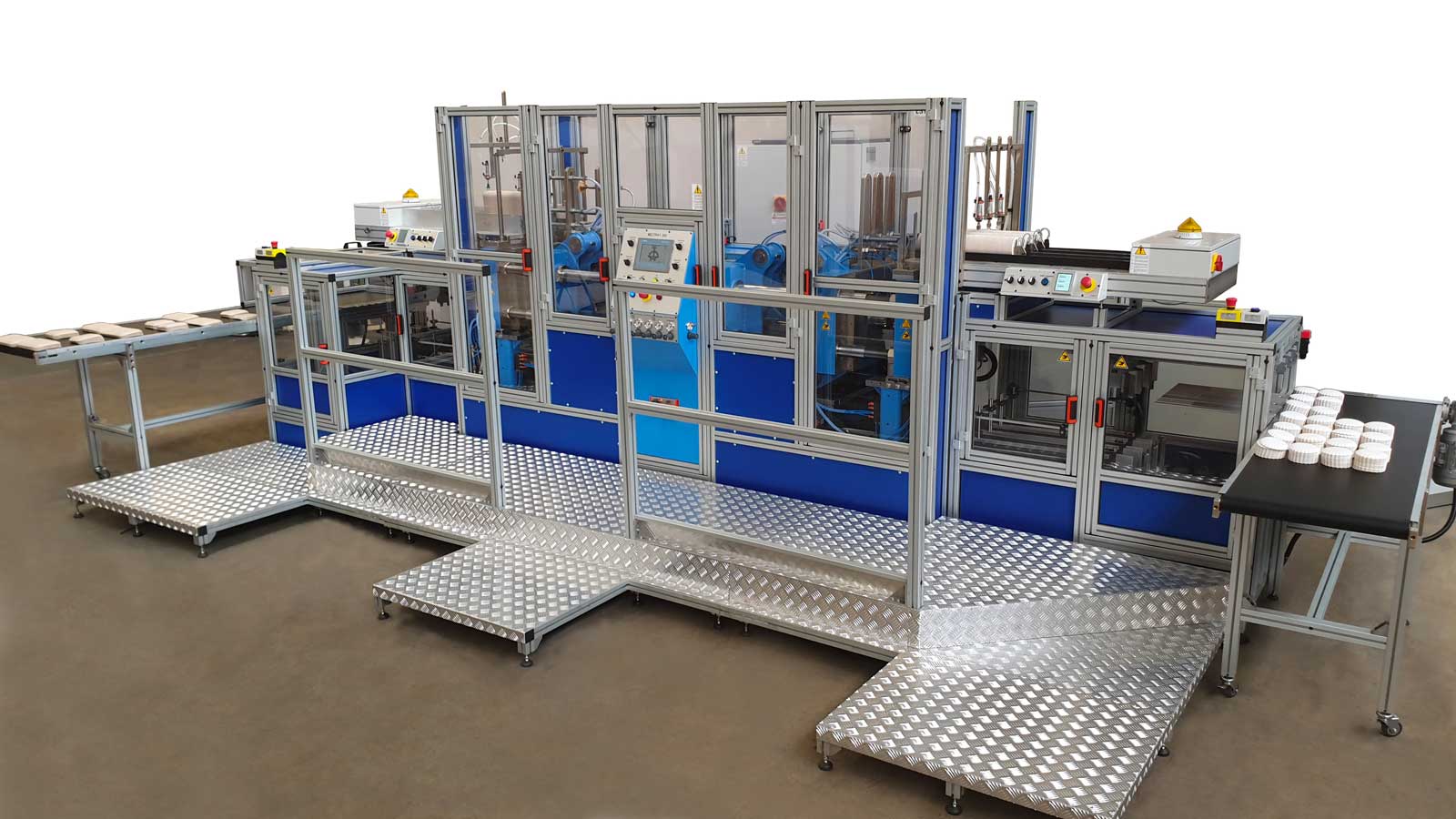

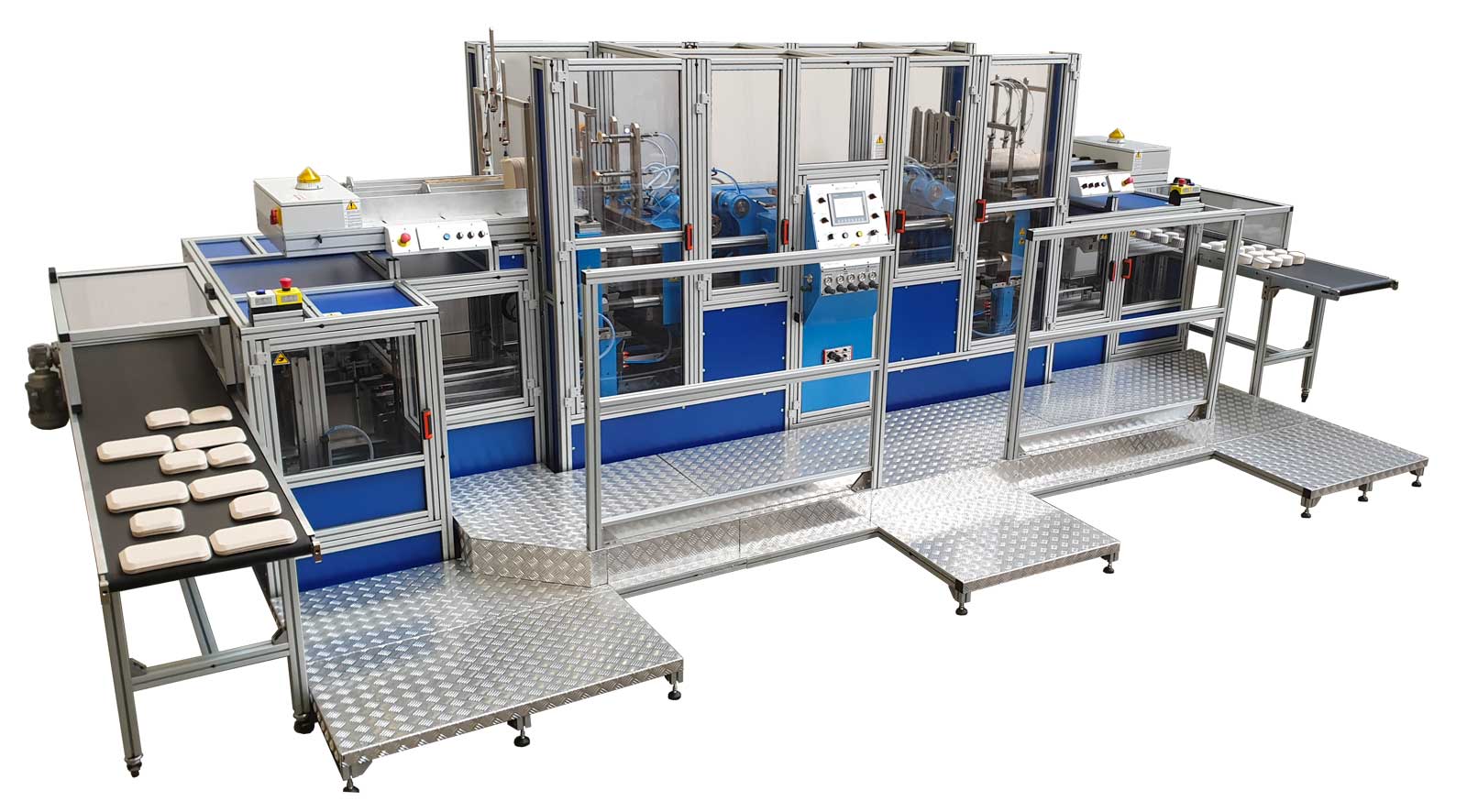

Mectray 200

Mectray 200

Automatic machine for the production of paper plates, trays and thermoformed container

WATCH THE VIDEO »

Innovative joint mechanic movement by brushless motor , in combination with multiplier power levers has the following advantages:

  • • High power
  • • High speed
  • • Reduced electric consumption

Workable materials:

  • • Any kind of 200 to 3000 grm² cardboard liner
  • • Alluminated cardboard
  • • PE-PP-PO-PET Laminated cardboard
  • • Corrugated cardboard
  • • Feeding by blanks
  • • Large working table dimensions
  • • Great power pressure
  • • Fast forming dies change
  • • Automatic stacking and counting of product

Optionals:

  • • Electro-pneumatic stacker and counting device
  • • Blanks retained (guided) feeding device (for particular or asymmetric blanks).

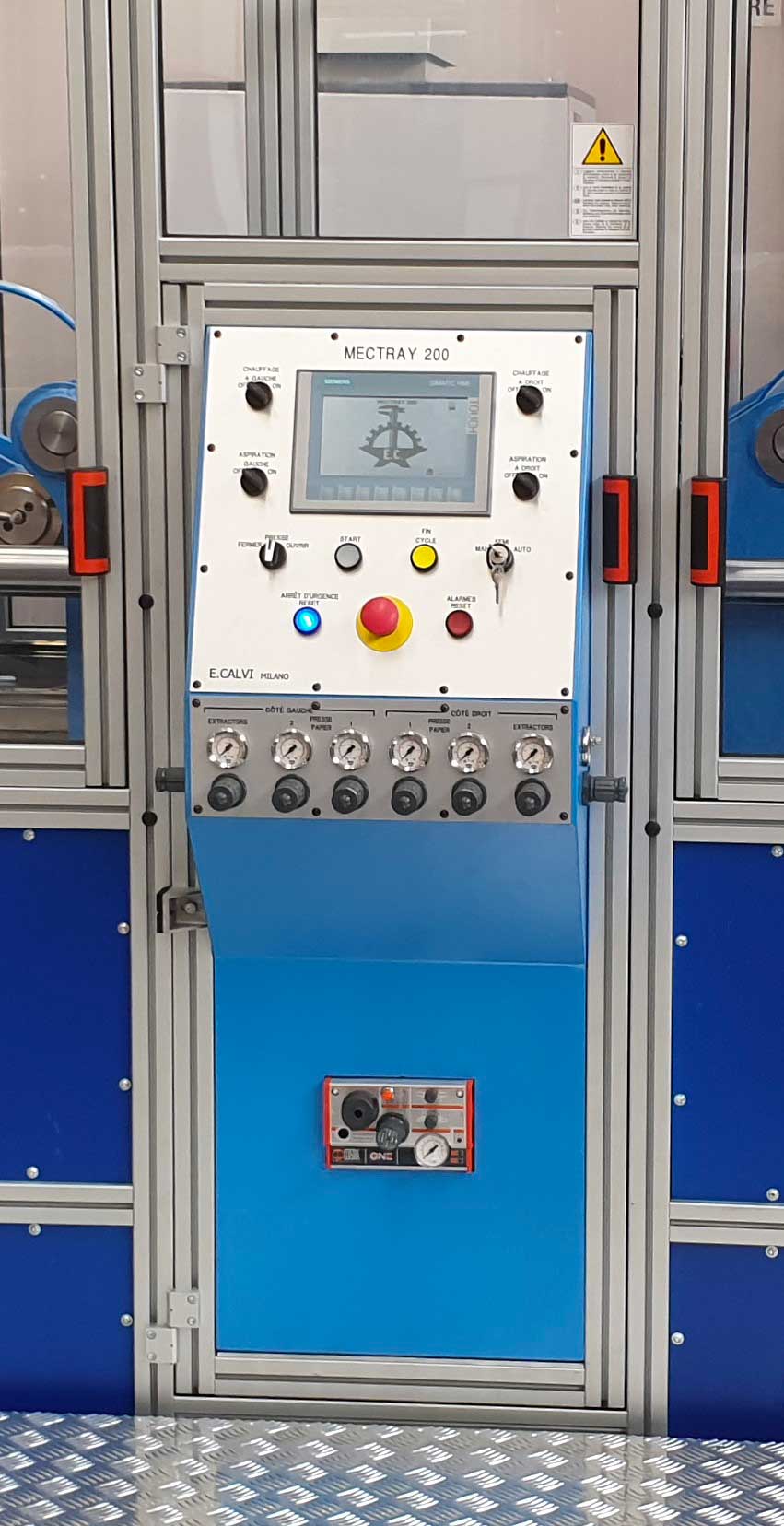

Electronic controls: Independent adjustment of working table’s temperature and relevant visualization (P.I.D: system). Possibility to modify working parameters directly on PLC keyboard which control all machine functions. PLC is supplied with an expansion that allows a direct connection by cable between the customer and our technical office for any intervention of modification request. This service offers on real time the possibility to control anywhere the machine while running.

Production: Proportionate to the type of working, size, weight and quality of material used and the time required for an optimal pressing time. Simultaneous movement of the plans that unlike machines with alternating movement allows to double the production.

Mectray 200

Technical features

Movement
Completely mechanic
Stroke for minute
max 70 for side (mechanic speed)
Pressure power
TONN 70
Run of pressing plane
mm 110
Working plane dimension
mm 455 x 605
Main motor
50Nm Brushless motor
Electric supply
Kw 21
Electronic control
by PLC
Feeding
Automatic by blanks
Lubrication
Automatic
Machine dimensions
cm 360 x 180 x 180 h
Weight
Kg 2500

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
