Press A500

Press A500

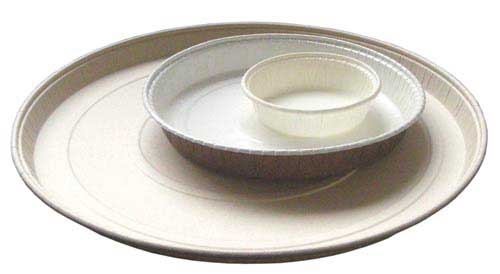

Automatic machine for the production of paper trays and contaners with curled rim

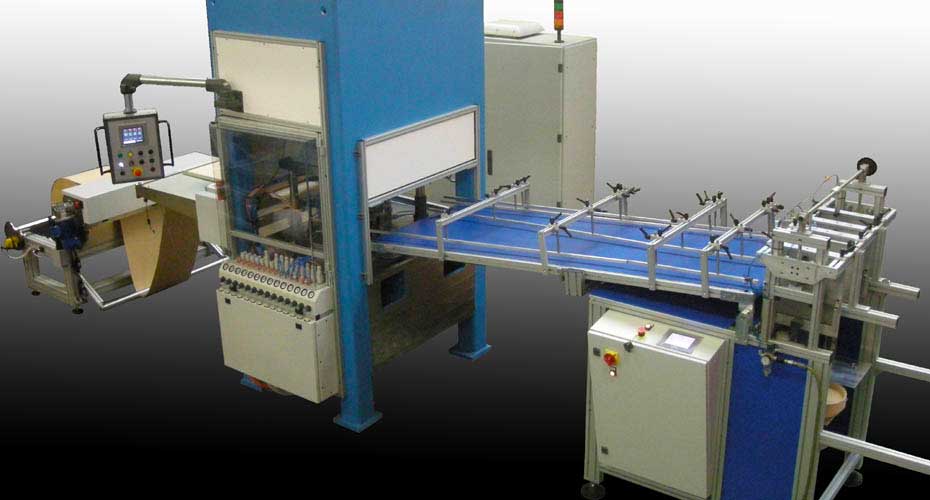

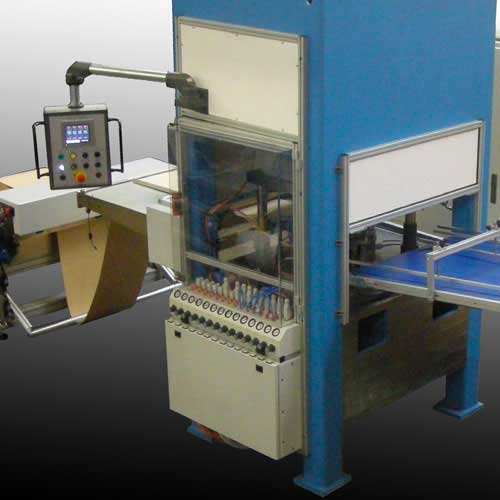

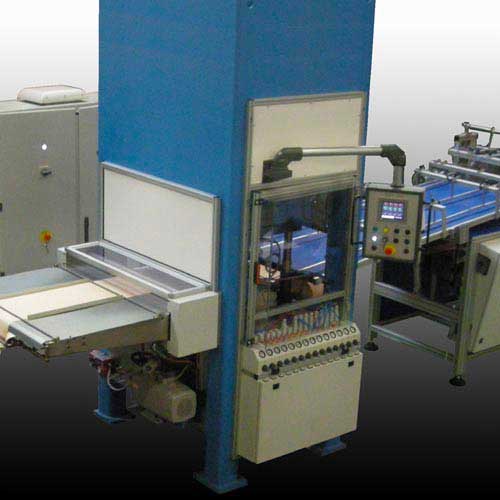

The new automatic machine mod. Press A500 is a 4 column mechanic pressing machine for the production of paper trays and food containers with curled rim directly from the reel. The machine is equipped with torque motor controlled by CNC and brushless motor for paper feeding. The forming moulds are especially manufactured for the punching and thermoforming of paper and laminated paper from 50 to 500 gsm.

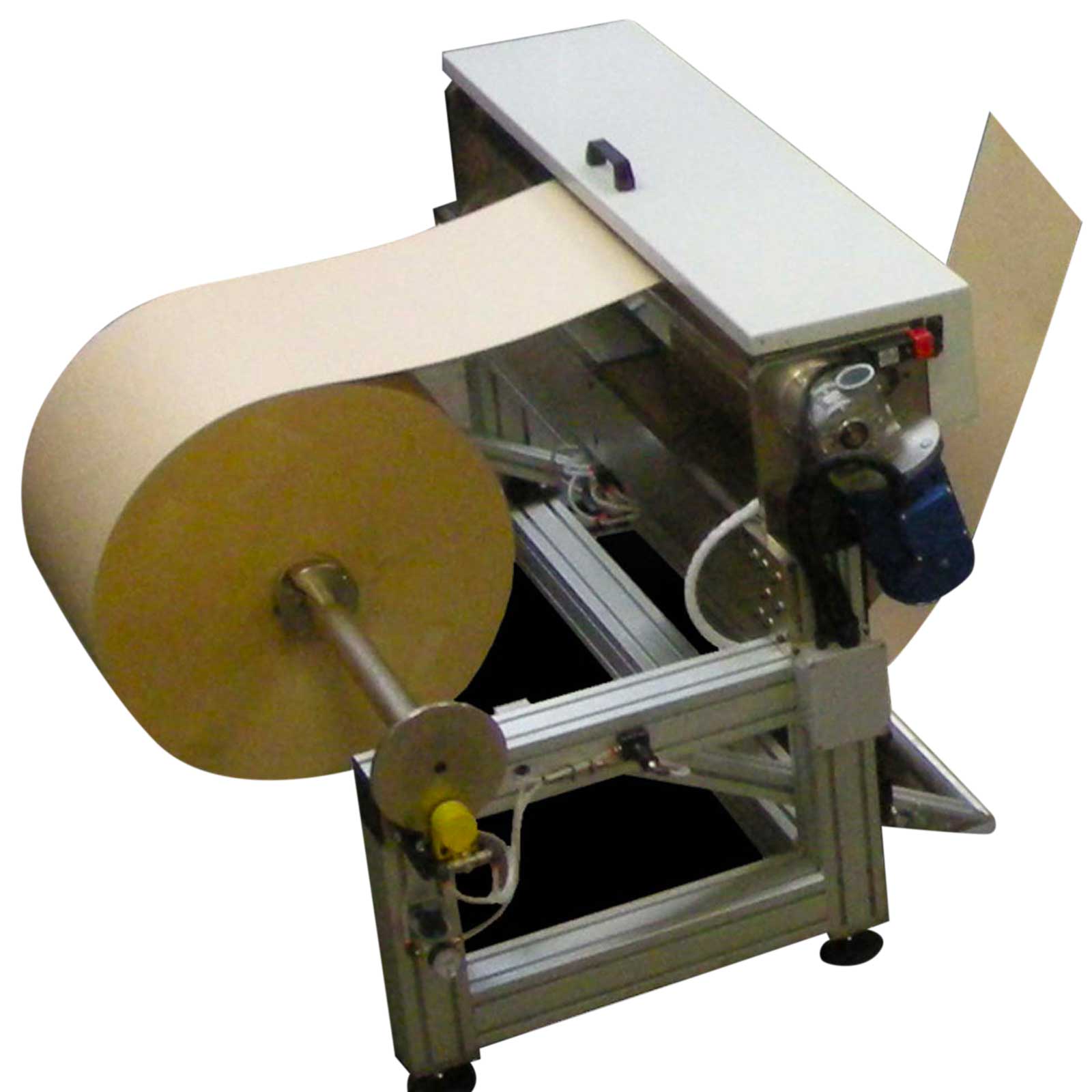

Optional: Stacking device built with aluminium structure, with electronic control system for counting pieces and pile automatic output adjustable in height.

Technical features

Pressing power
6 TONS
Main motor
Torque 500Nm
Max. opening between planes
200 mm
Electronic control
PLC - CNC - Touch Panel
Workable plane dimensions
700x1000 mm
Strokes for minute
max 50
Feeding
by reel
Electric supply
400V 50Hz 40kW

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
