PIR 40

PIR 40

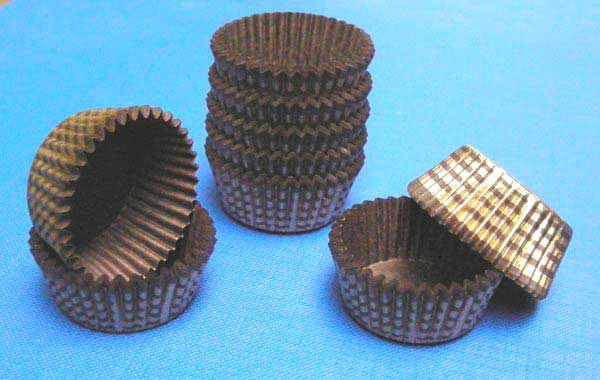

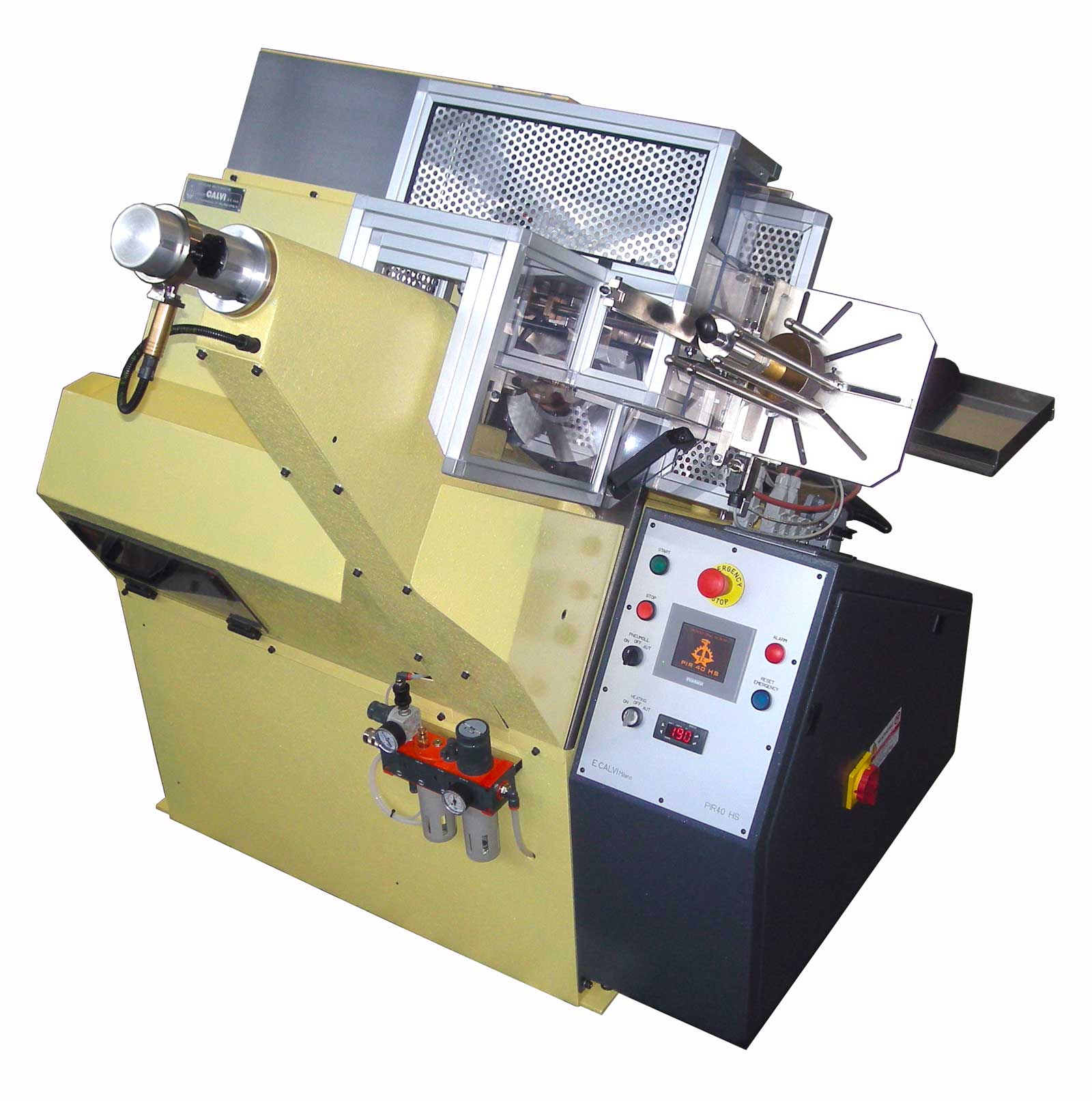

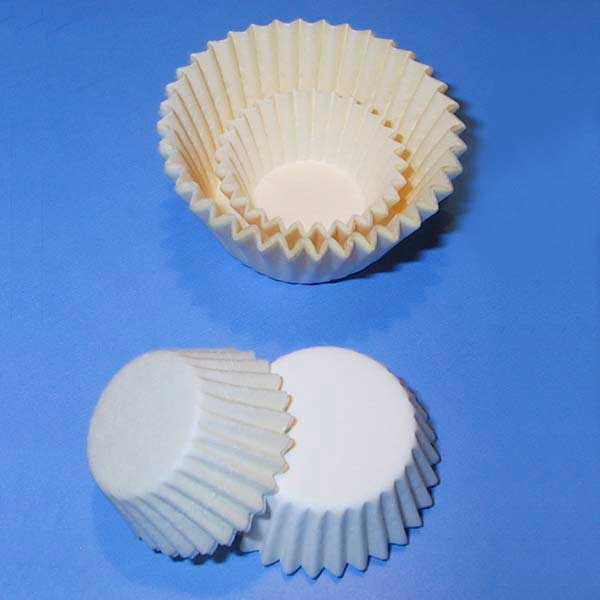

Automatic machine for production of paper crimped baking cases / cups

WATCH THE VIDEO »

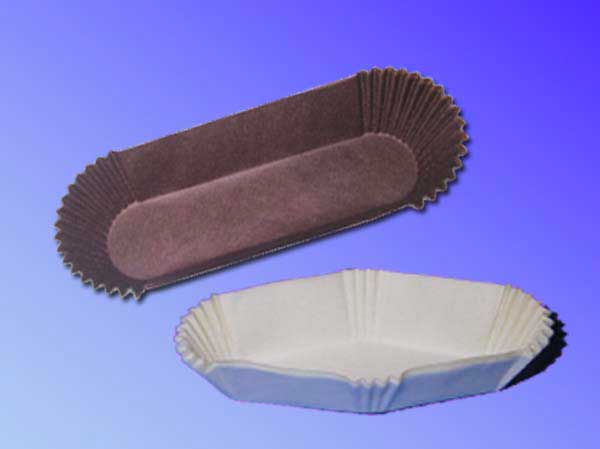

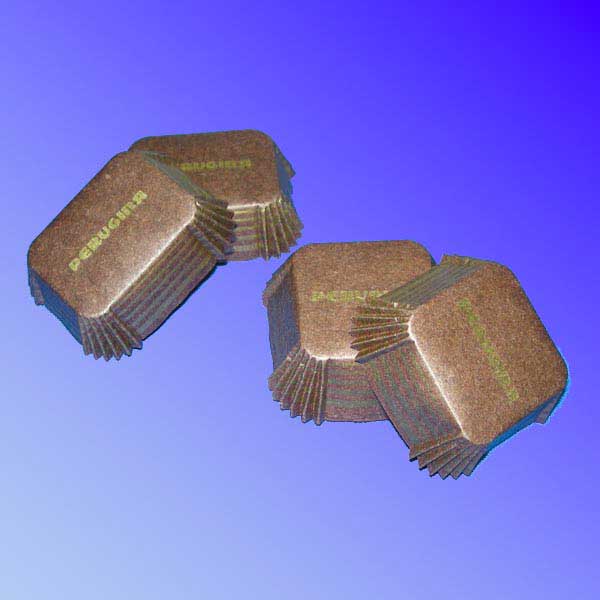

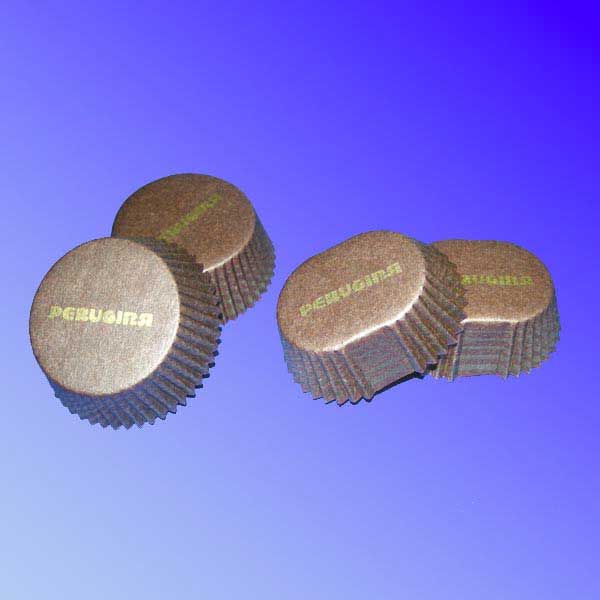

The machine can produce all shapes (round, square, rectangular, oval, etc.). Optionals:

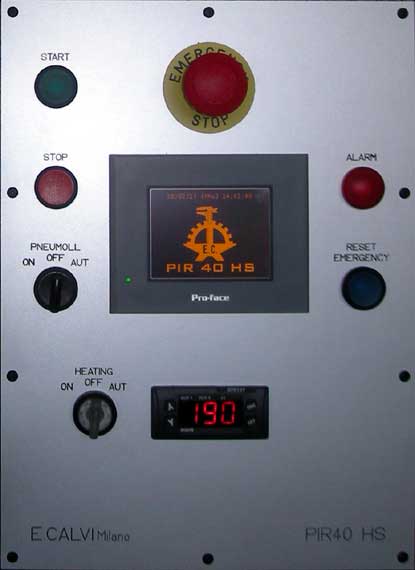

  • Pneumoll: Pneumatic device with adjustable pressure, substitutive of traditional springs normally fitted in each forming die.

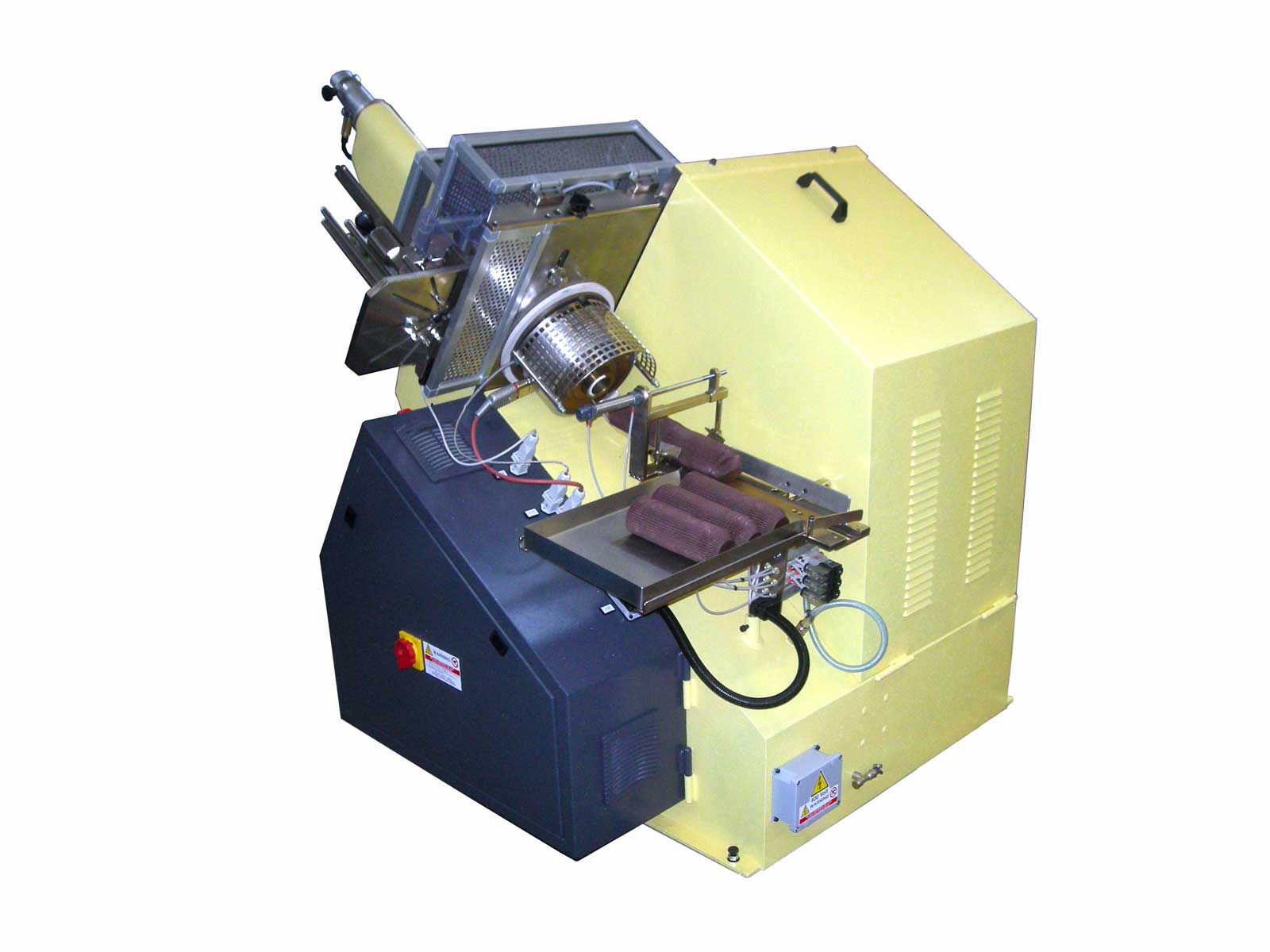

  • Stacking: Counting and piles separing device with side holder plate.

PIR 40

Technical features

Feeding
By blanks
Piston run
110 mm
Main motor
1.5 Kw
Electric supply
400V 50/60 Hz
Output
up to 60.000 pieces/h
Strokes for minute
up to 60
No. crimped cases per
up to 30
Max. blanks size
230 mm
Stacking of finished
Automatic
Dimension
cm 160x80x140h
Weight
900 kg

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
