Eco Rapid Mini

Eco Rapid Mini

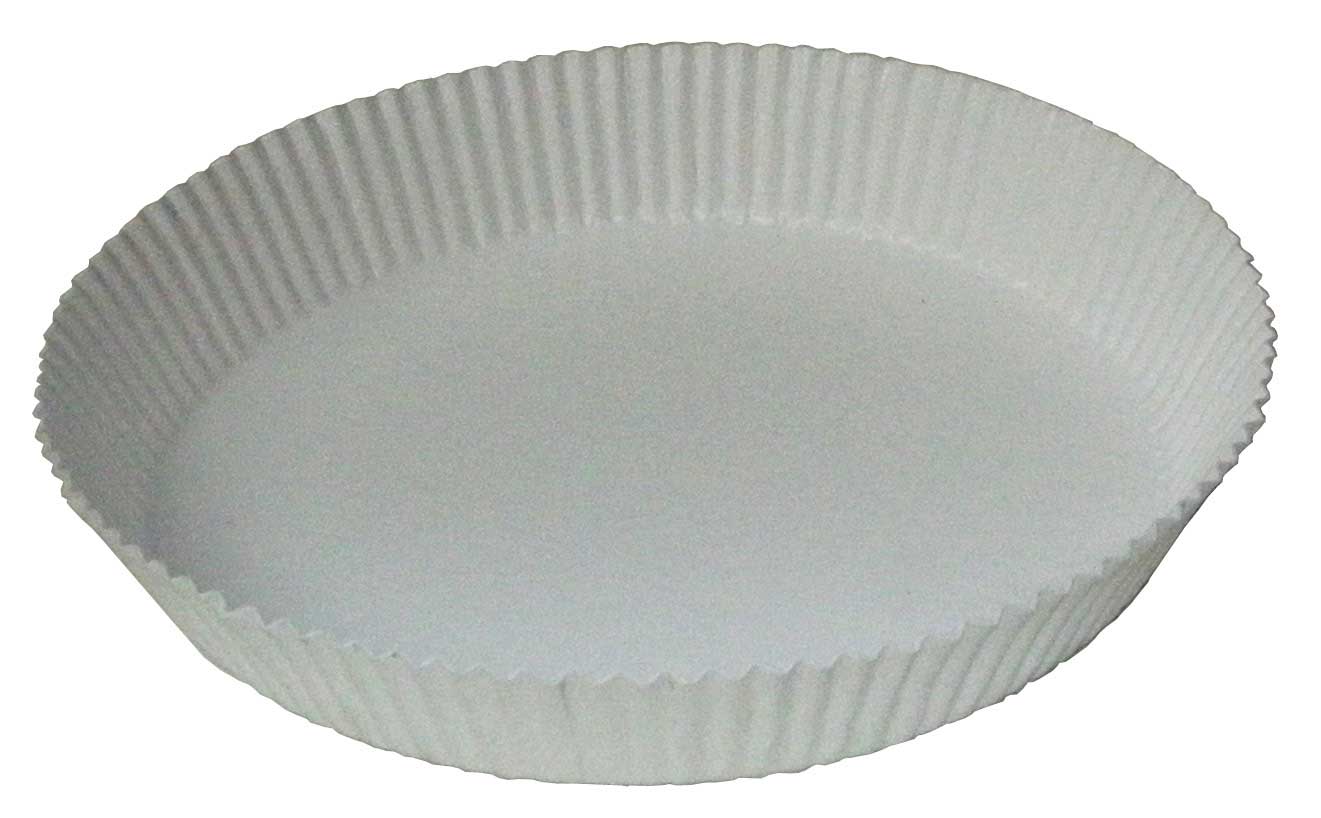

Automatic single effect machine for the production of plates, trays, containers.

WATCH THE VIDEO »

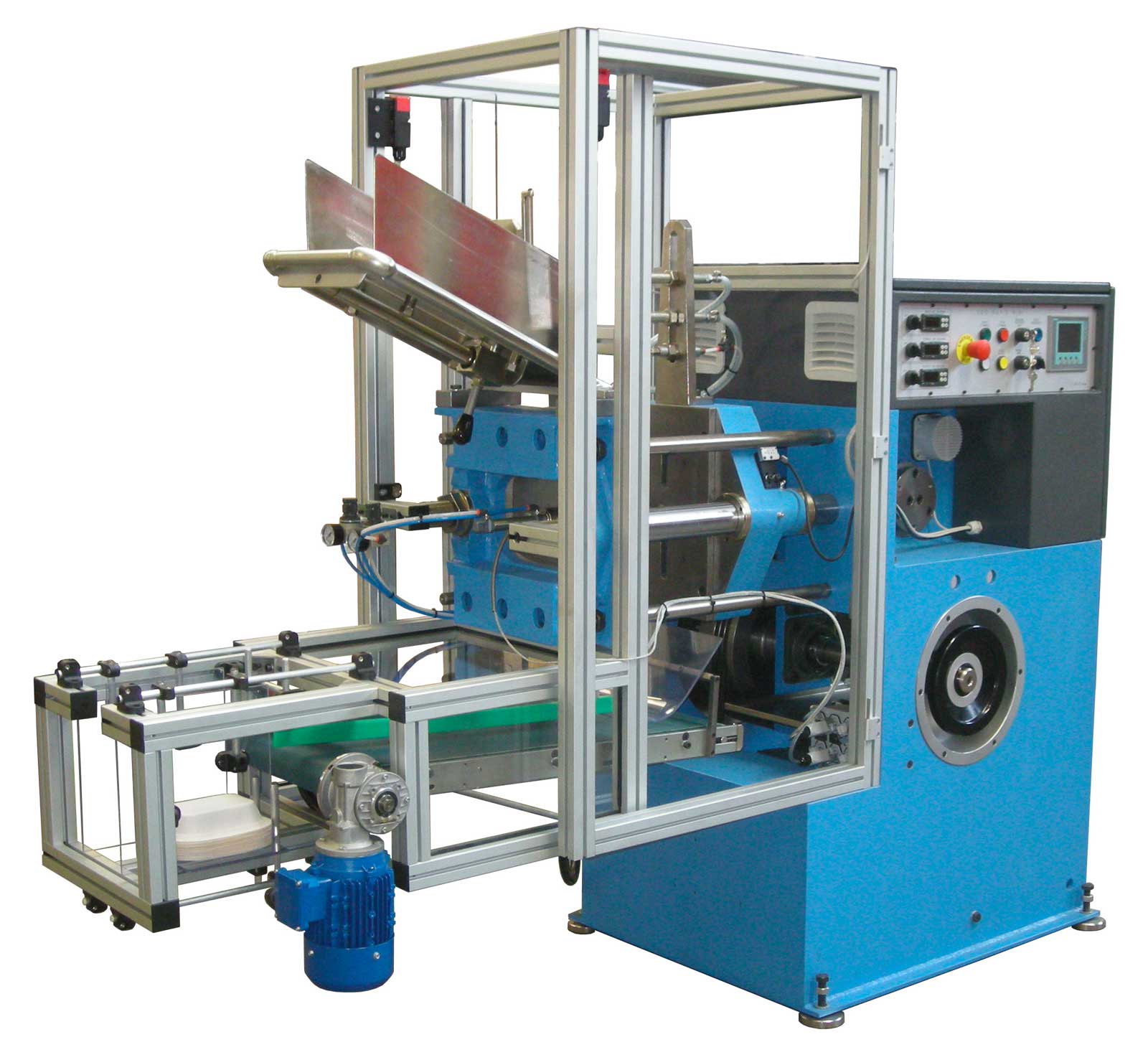

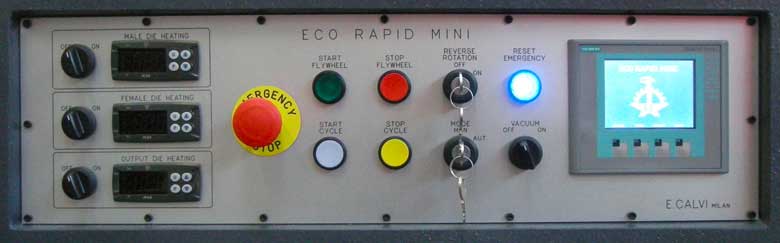

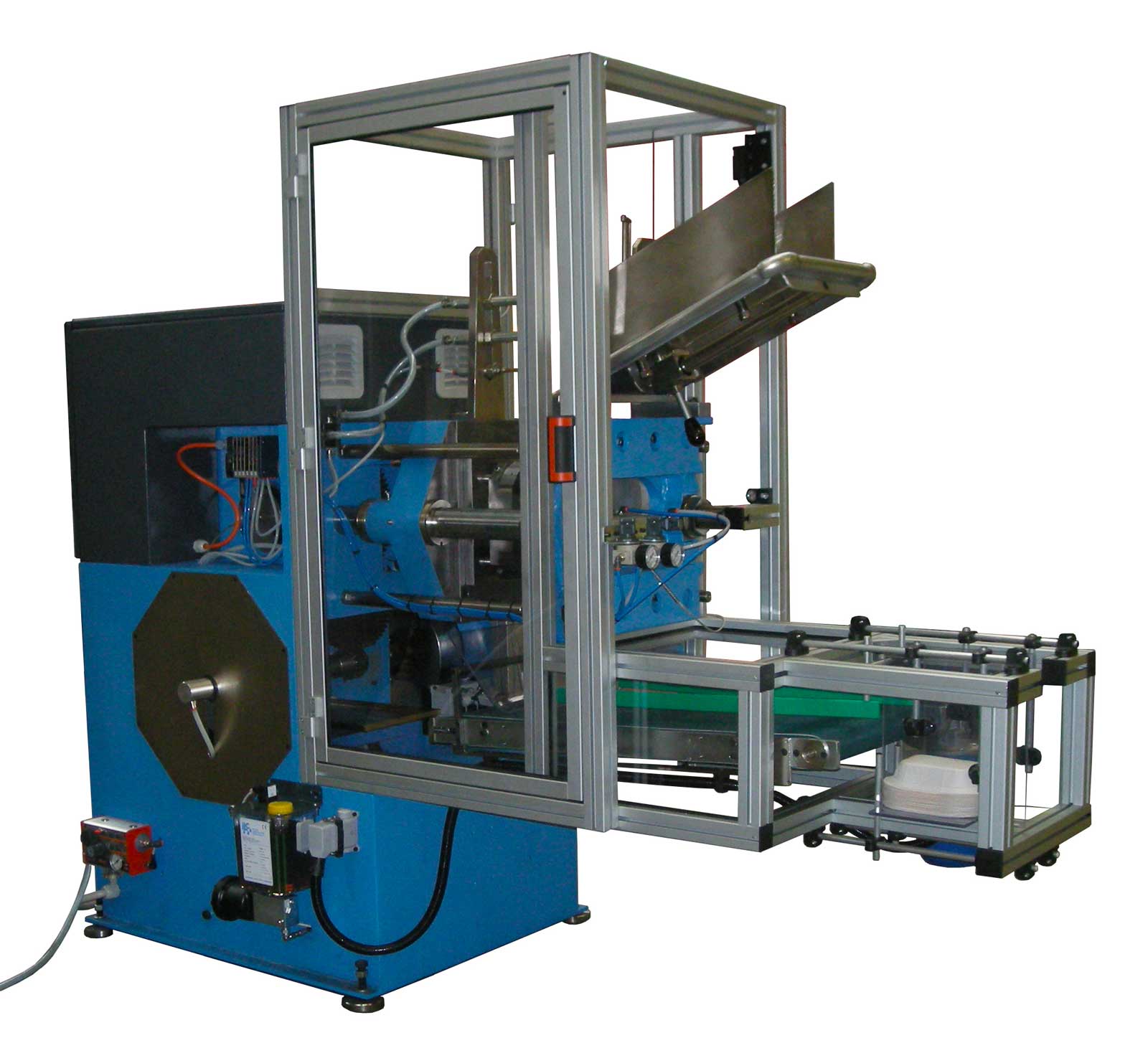

The machine ECO RAPID MINI is one of the first mechanical presses, but if the steel structures were those that have always characterized the strength and endurance of the machines Calvi, the components within them are the latest in technology and reliability. The production speed is entrusted to high yield of new systems of PLC, connected to a control panel is easy to use.
The characteristics of the Eco Rapid Mini are the following::

  • • Feeding supply from blank
  • • High production rate
  • • Three independent heating zones
  • • Quick size change

Materials used:

  • • Cardboard of any kind from 200 to 3000 g / m
  • • Cardboard coupled to aluminum
  • • Cardboard coupled to film PE-PP-PO-PET
  • • Microwave cardboard or corrugated

Optionals:

  • • Stacking device
  • • Guided feeding device for blank (for asymmetrical blanks).

Eco Rapid Mini

Technical features

Movable plane
Mechanic movement
Stroke for minut
max 50 (mechanical speed)
Pressure power
TONN 70
Pressing run
mm 100
Workable plane dimensions
mm 300 x 360
Main motor
HP 1
Electric consumption
Kw 6.3
Electronic control
by PLC
Feeding
Automatic
Lubrication
Automatic
Machine dimensions
cm 180 x 175 x 170 h
Weight
Kg 900

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
