Muffimatic

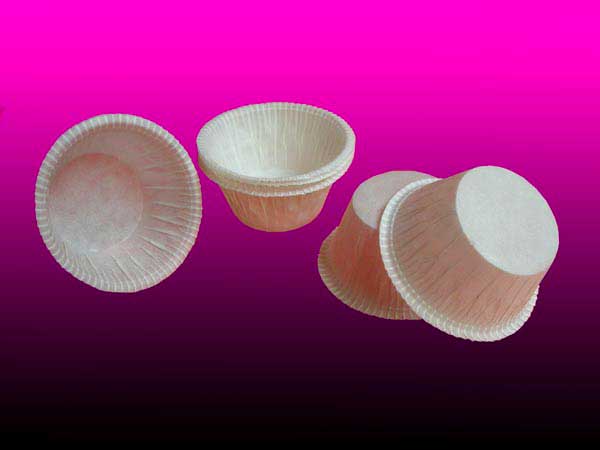

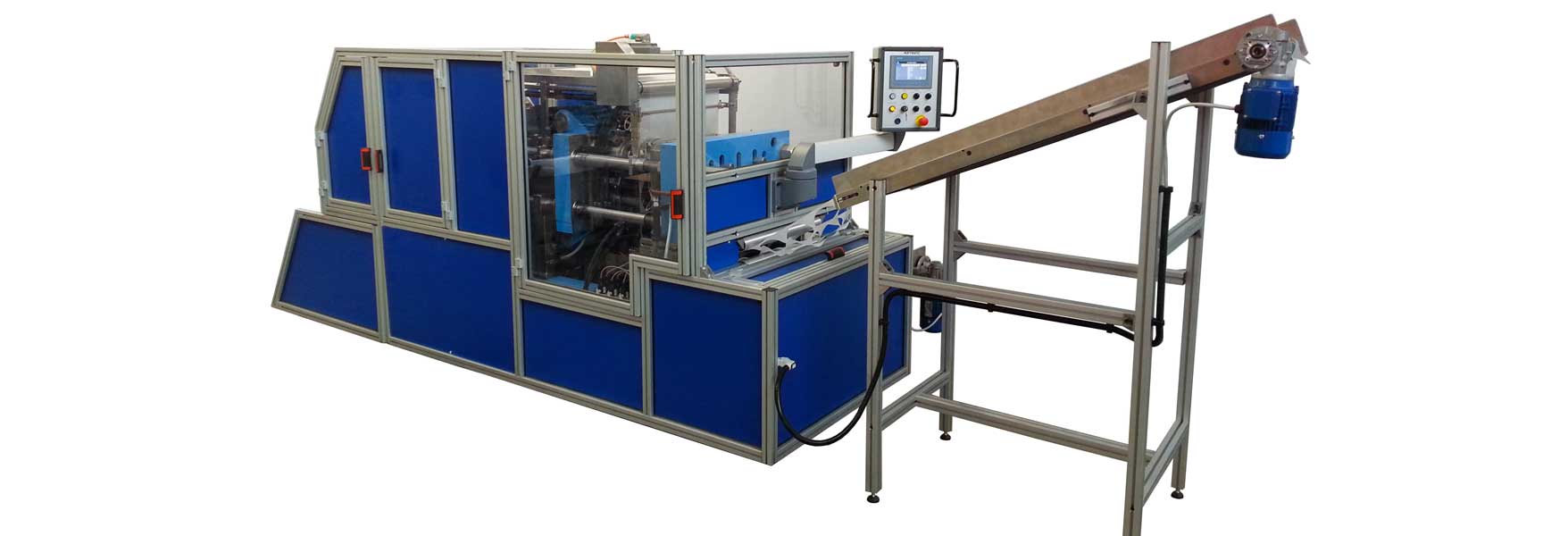

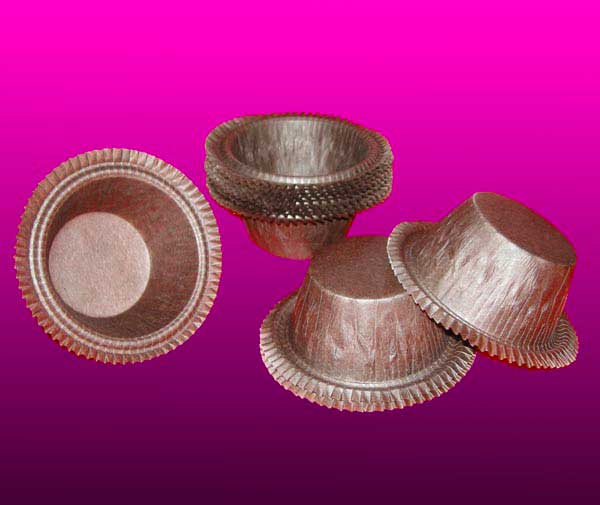

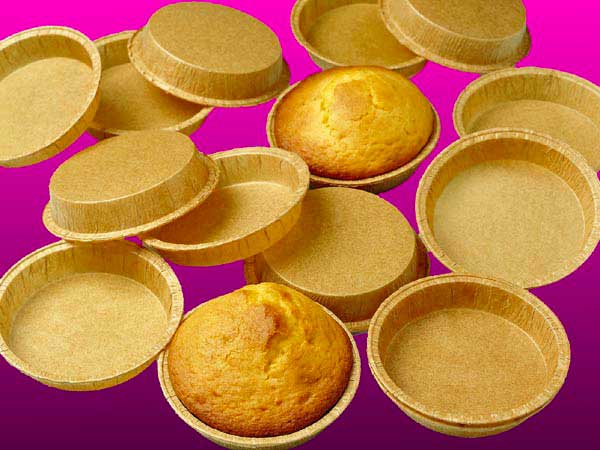

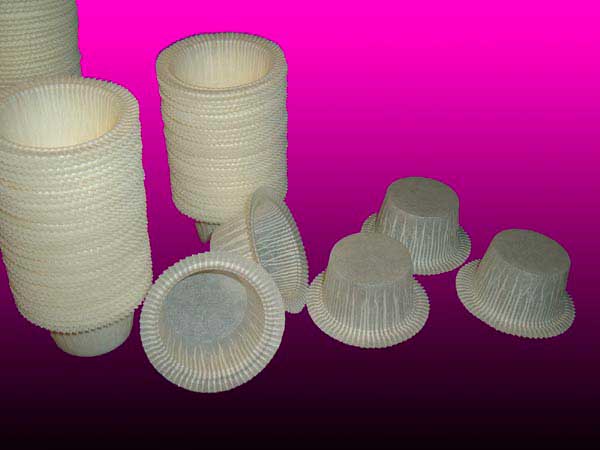

Automatic pressing machine mod. Muffimatic for the production of paper muolds for muffin, cake, pizza and backery products

WATCH THE VIDEO »

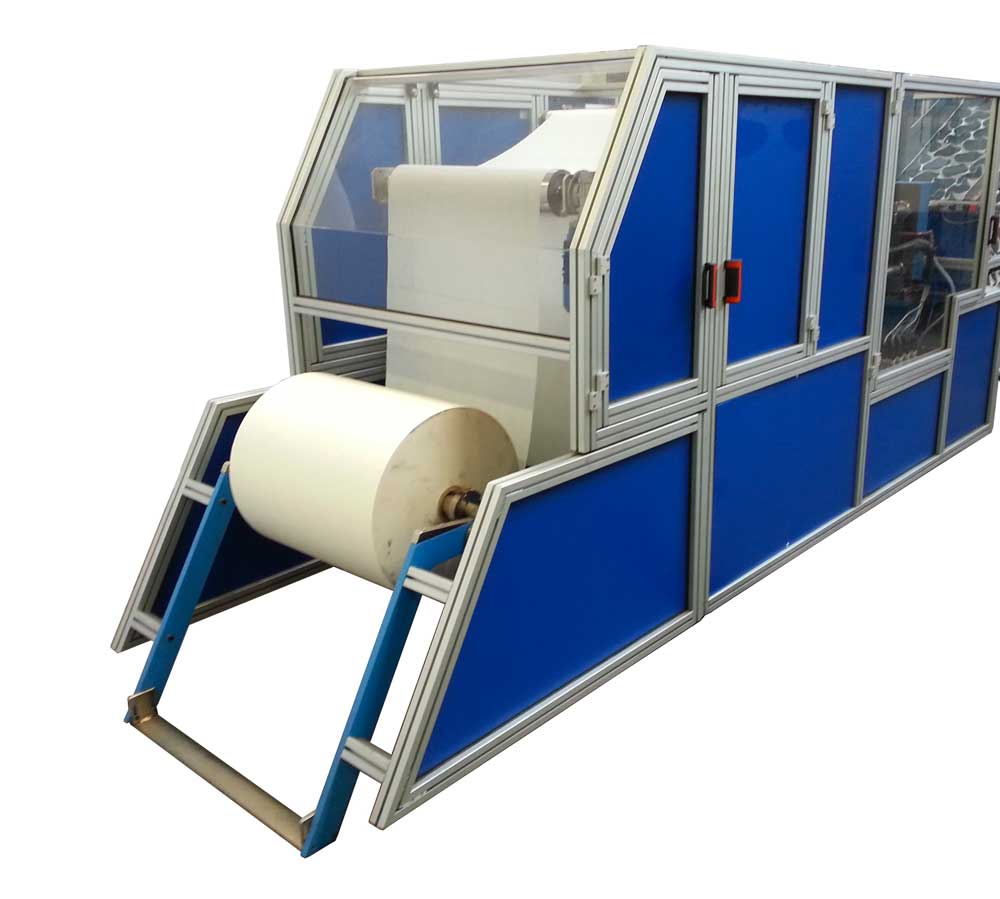

Feeding by reel - Pre printed material register - Automatic paper feeding by brushless motor - Innovative joint mechanic movement by brushless motor - High output rate - Great power pressure - Large working tables dimension - Fast forming dies change - Automatic stacking device and counting of product Indipendent adjustment of working table's temperature and relevant visualization. Possibility to modify working parameters directrly by Touch Screen display which control all machine functions. It is quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.

Muffimatic

Technical features

Working plane dimension
mm 455 x 605
Run of pressing plane
mm 113
Pressing power
TONN 70
Stroke for minute
max 50 (velocità meccanica)
Main motor
36 Nm
Electric consumption
Kw 16
Electronic control
by PLC
Dimension
cm 400 x 150 x 190 h
Weight
Kg 1600
Production
Depending on thickness and quality of cardboard

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
