Automatic reel-fed die-cutting machines

WATCH THE VIDEO »

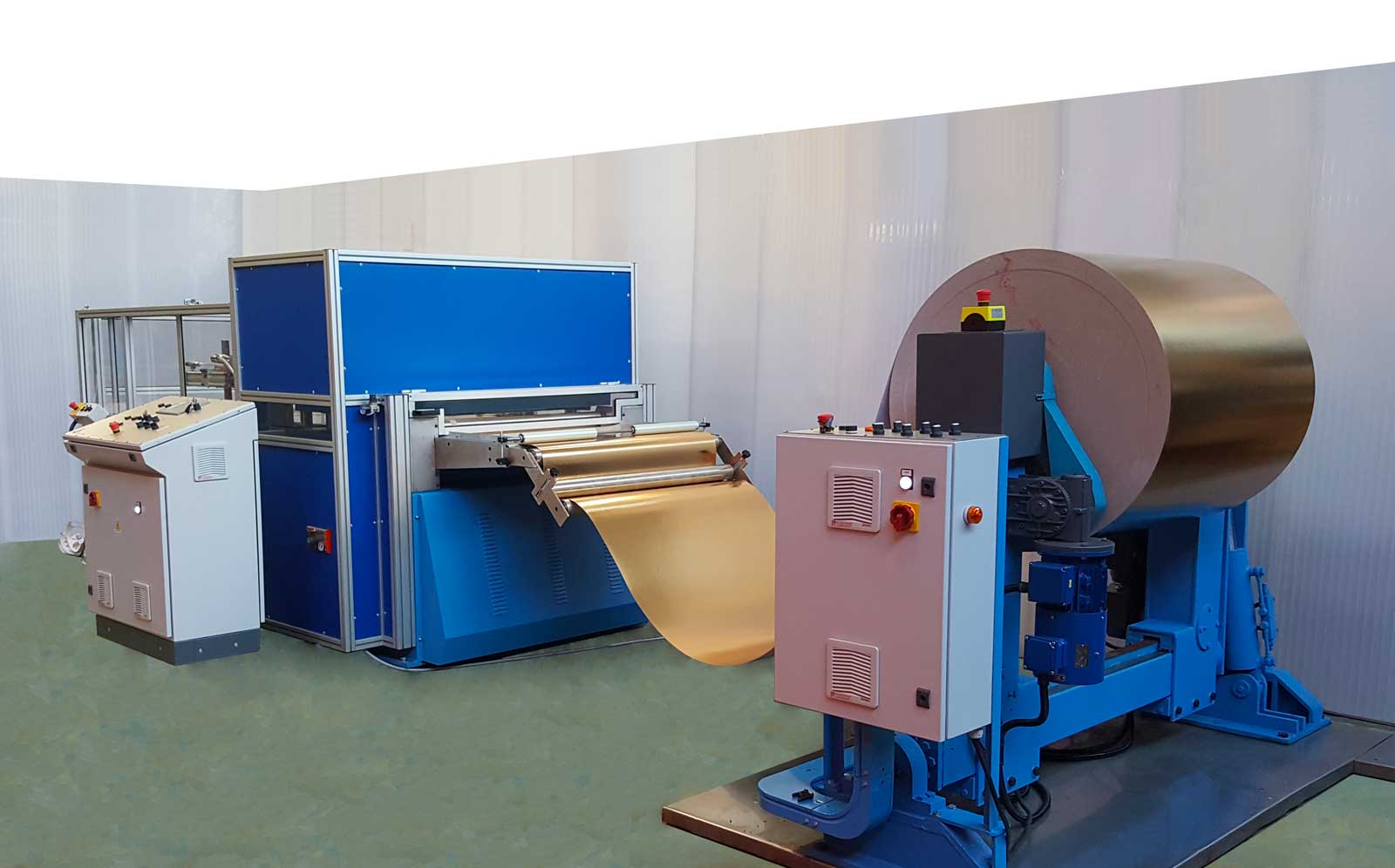

The "IL 12/14" automatic die cutting machines are reel-fed mechanic pressed used to die-cut cardboard, paper and similar materials. The basic model (press) is available in two formats with four guide bars and one with two guide bars and they can be equipped with modular elements. These are, for example, register units, stripping and stacking units on pallet or conveyor belt, one or two colors flexo printing units, multiple reels laminating units.

Thanks to a special feeding system (patented) the machines can be equipped to die-cut multiple reels of thin paper (from 60 gr/m² onwards) with final stripping and stacking.

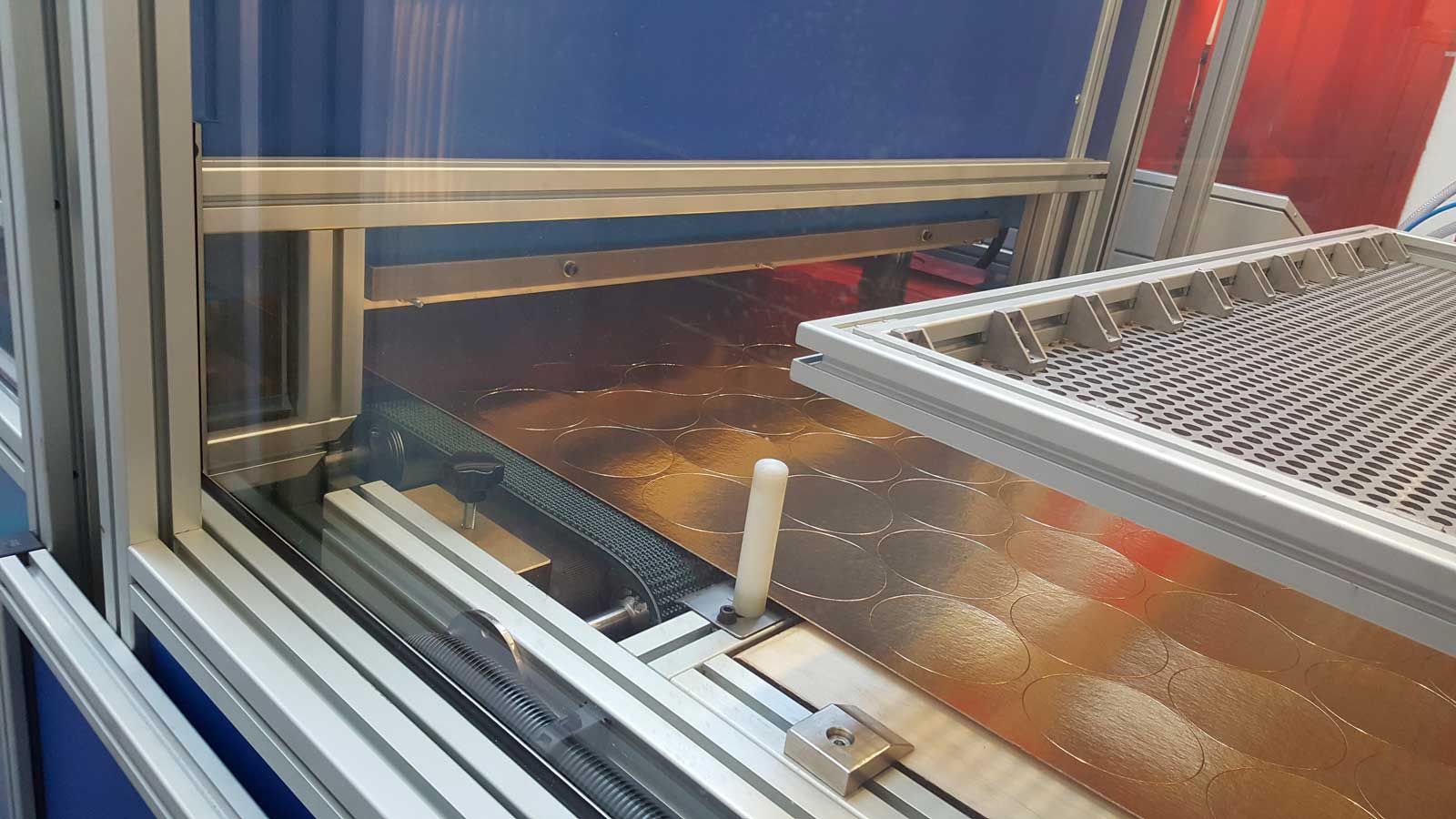

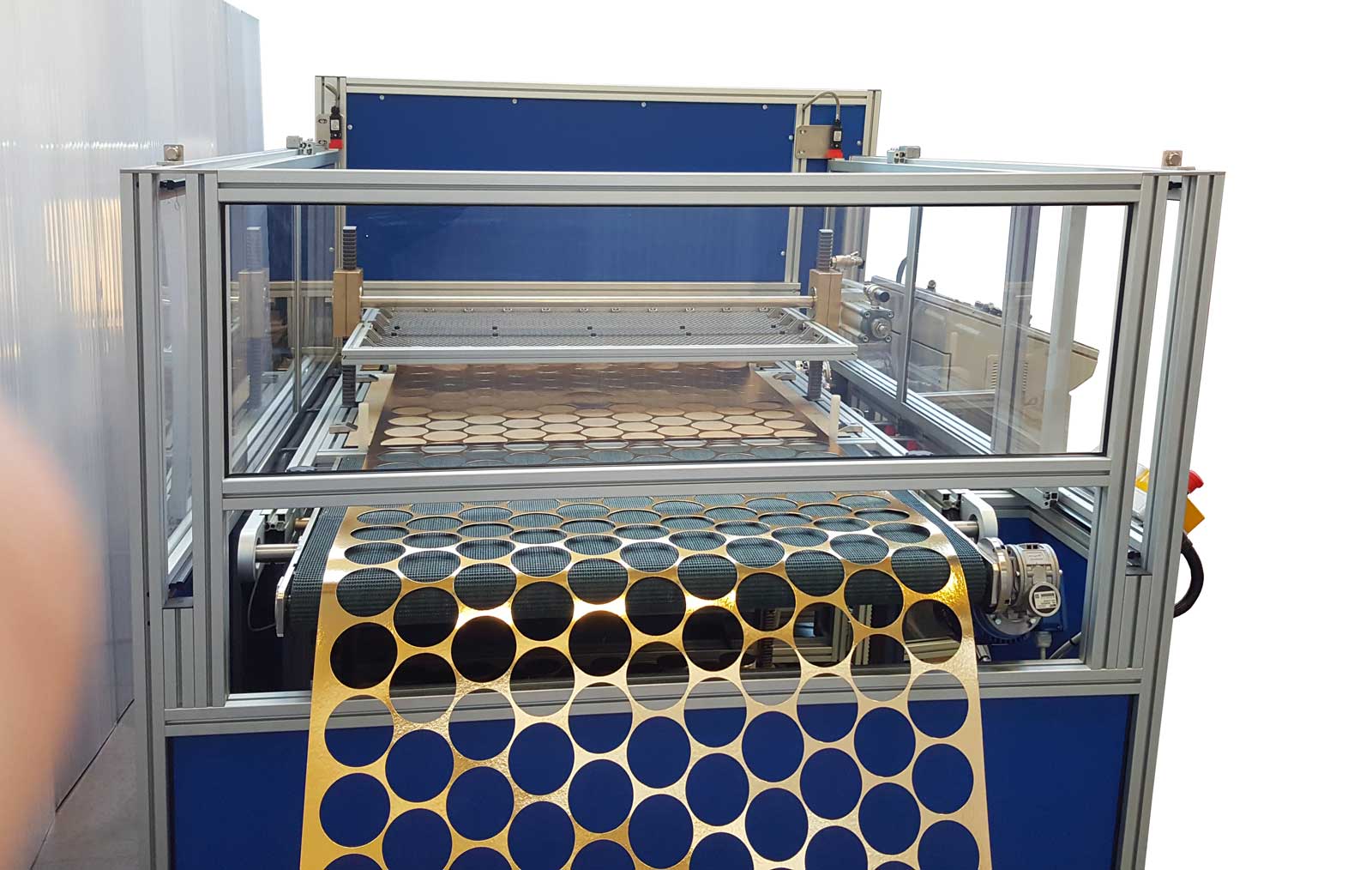

The model IL 12 G, a mechanic machine with two guide bars, can be equipped with an open movable die cutting plane, used to house multiple cutting dies. This system is particularly suitable for small shapes (such as small discs or plates) from cardboard or similar materials. This model also guarantees automatic stripping and stacking operations.

IL 12/14

Technical features

IL 12.2C
IL12.4C
IL14.4C
Mechanic pressing machine
with 2 guide bars
with 4 guide bars
Working plane dimension
500X1050 mm
720X1050 mm
820X1150 mm
Run of pressing plane
65mm
Max. opening between planes
150mm adjustable
Main motor
3kW
4kW
Pressing power
35 Ton
55 Ton
65 Ton
Stroke for minute
60
Max reel diameter
1500mm

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.

Technical features
IL 12.2C

IL_12_2C_TABELLA

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.

Technical features
IL 12.4C

IL_12_4C_TABELLA

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.

Technical features
IL 14.4C

IL_14_4C_TABELLA

Quality policy continuously develop our products. We therefore, reserve the right to modify the information contained in this data sheet without notification.
